Built-in field templates and imported DXF/CSV files help crews move from design to marking with fewer manual layout steps.
Get a Quote →
← Back to GNSS Application SolutionsIntelligent marking robot

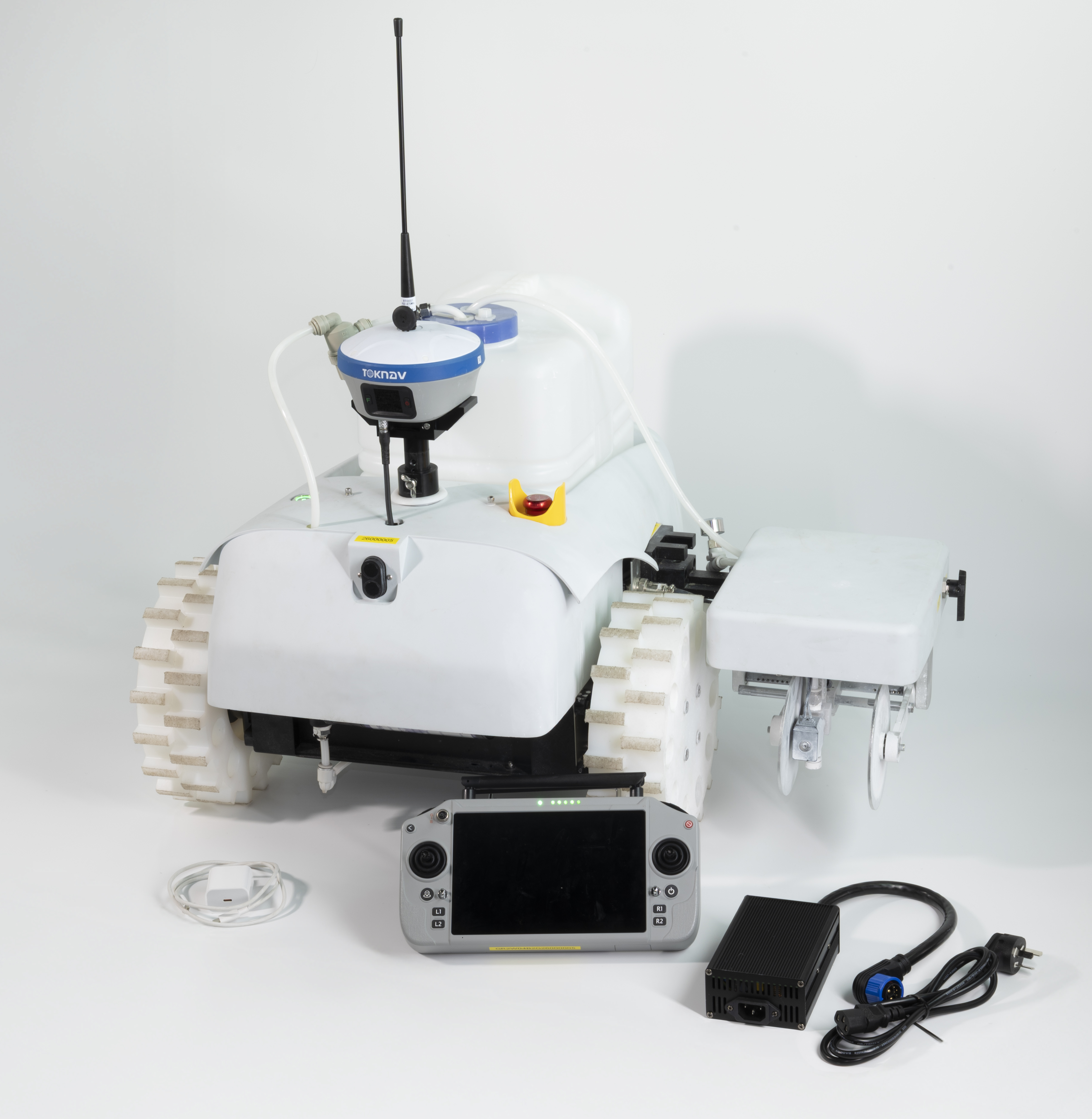

TR10Pro Line Marking Robot
RTK-guided line marking robot for sports fields, highways, municipal roads, airport runways and pre-marking workflows.
Marking accuracy+/-1.5cm
SpeedUp to 1m/s
Drawing width5cm-15cm adjustable nozzle
EnduranceUp to 30km
From design file to field marking
The TR10Pro workflow is built around practical marking work: import a design file, calculate the task, plan the route, locate with RTK and let the robot mark repeatable lines on the field.
Import DXF / CSVPlan routeRTK locateAutomatic marking
Key Features
✓Centimeter-level marking accuracy
✓3 times faster than manual work
✓Built-in sports field templates
✓DXF and CSV file import
✓5cm-15cm adjustable side nozzle
✓0-degree turn in place
Buyer-focused value
Why overseas buyers choose this model
Structured for dealers, contractors and system integrators comparing receiver performance, kit completeness and after-sales preparation.
RTK positioning and robotic route planning support repeatable centimeter-level line marking on sports fields, roads and runways.
The adjustable side nozzle, 10L hopper and 0-degree turn-in-place design make the robot practical for different marking jobs and tight spaces.
Applications
Typical project scenarios
Use the application cards as a quotation starting point. TOKNAV can confirm the final kit after checking project environment and delivery requirements.
Recommended configuration and accessories can be confirmed according to the project site, correction method and buyer's country.
Recommended configuration and accessories can be confirmed according to the project site, correction method and buyer's country.
Recommended configuration and accessories can be confirmed according to the project site, correction method and buyer's country.
Recommended configuration and accessories can be confirmed according to the project site, correction method and buyer's country.
Brochure-based details
Complete Specifications
The table below organizes key parameters from TOKNAV catalogs and model datasheets into procurement-friendly groups for easier comparison.
Positioning and Workflow
GNSS positioningFull-constellation RTK positioning with 1408 channels
Supported constellationsBDS, GPS, GLONASS, Galileo, SBAS and QZSS listed in the latest TR10 series brochure
File importDXF, CSV and other design file formats supported by the app
TemplatesBuilt-in sports field models, icons, arrows and numbers, with user-defined editing and template import
WorkflowImport design file, calculation, task scheduling, route planning, measuring and locating, automatic marking and report output
Marking Performance
Marking accuracy+/-1.5cm listed in the latest TR10 series brochure
Line typesDots, lines, curves, numbers, letters and patterns
Drawing width5cm-15cm adjustable side nozzle
MaterialLatex paint / titanium white slurry
Hopper capacity10L
Operating speedMaximum speed 1m/s; mobility speed listed as 2.6km/h
ProductivityBrochure describes the workflow as 3 times faster than manual work
Robot Platform
DimensionsTR10Pro: 525 x 746 x 527mm, with removable side scribing mechanism width of 243mm; TR10: 558 x 610 x 527mm
WeightTR10: 36kg; TR10Pro: 39.3kg
Motor400W x 2 hub motors
Turning radius0-degree turn in place
Climbing ability20 degrees
Wheelbase / wheel track400mm wheelbase, 465mm wheel track
Controller, Battery and Environment
ControllerAndroid tablet control
BatteryTR10: 48V / 15Ah lithium; TR10Pro: 48V / 7.5Ah lithium
Battery life8 hours listed in the brochure
EnduranceUp to 30km listed in the brochure; customized battery capacity supported
CommunicationCAN
IP ratingIP3X
TemperatureOperating -10°C to 60°C; storage -10°C to 45°C
Downloads and inquiry package
Get Catalog, Datasheet and Quote Support
Download the category brochure or send the model requirement directly to TOKNAV sales for the latest datasheet, price and recommended accessories.
Ready for quotation?Send your target quantity and application for TR10Pro Line Marking Robot.
Send Requirements →Buyer Notes
Parameters may be updated by the manufacturer. For quotation, distributor cooperation or OEM/ODM projects, please send your target application, quantity, country and required accessories so TOKNAV can confirm the latest configuration.
Procurement FAQ
Common Questions Before Purchase
What is TR10Pro Line Marking Robot mainly used for?
TR10Pro Line Marking Robot is mainly used for Sports field marking, Highway pre-marking, Municipal road marking, Airport runway marking. Buyers can confirm the final configuration based on project application, country, correction method and accessory requirements.
Can I request the latest datasheet and price for TR10Pro Line Marking Robot?
Yes. Use the quote form on this page to request the latest datasheet, price, MOQ, lead time, packing list and recommended accessories for TR10Pro Line Marking Robot.
Are the parameters final for every market?
Product parameters may be updated by the manufacturer and can vary by configuration or regional version. TOKNAV should confirm the latest configuration before quotation or shipment.
Procurement support
Get Model Quote →Need help choosing a complete receiver kit?
Send your model, target quantity, market country, application and accessory preference. TOKNAV can prepare a practical quote package for distributor review or project bidding.
Deformation Monitoring Solution

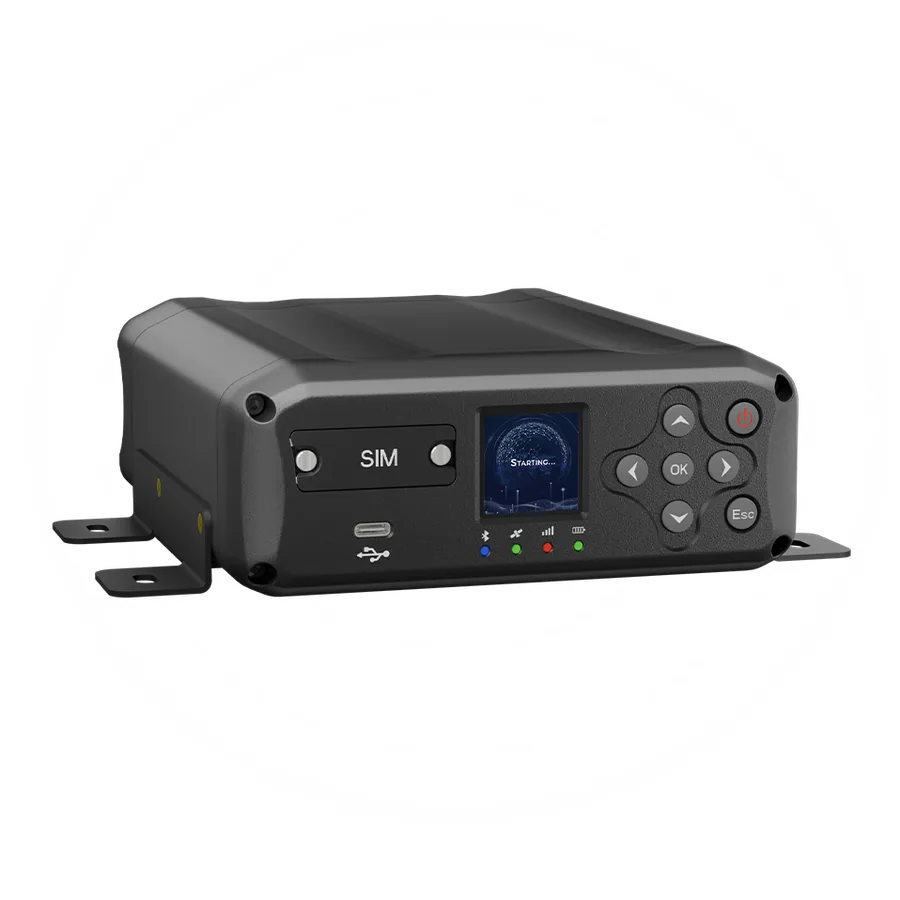

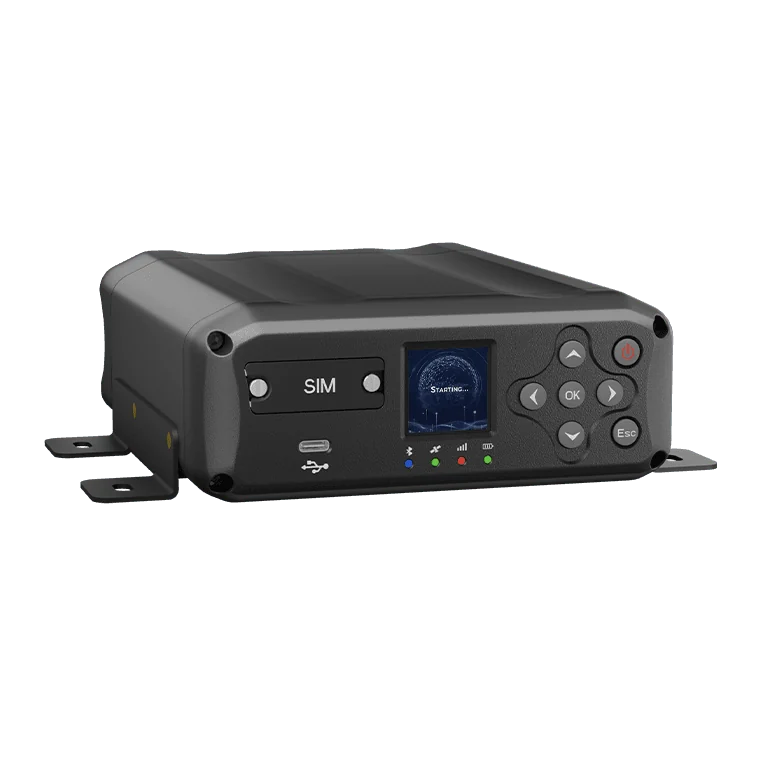

CORS and VRS Service Solution
