The Tboat series gives distributors two USV sizes for different water-area projects, from compact bathymetric survey to professional multi-payload operations.
Get a Quote →
← Back to GNSS Application SolutionsUnmanned surface vehicle
Tboat USV Series
Tboat10 and Tboat20 unmanned surface vehicles for bathymetric survey, water quality monitoring, patrol and hydrographic operations.
ModelsTboat10 / Tboat20
Payload35kg / 50kg
RTK accuracyH +/-8mm + 1ppm, V +/-15mm + 1ppm
EnduranceUp to 7 hours at 1.5m/s
Key Features
✓Tboat10 and Tboat20 platforms
✓RTK positioning accuracy
✓4G / 2.4G / optional radio communication
✓Up to 7 hours endurance
✓IP67 hull design
✓Multiple payload options
Buyer-focused value
Why overseas buyers choose this model
Structured for dealers, contractors and system integrators comparing receiver performance, kit completeness and after-sales preparation.
RTK positioning, 4G/2.4G communication and optional radio/CORS workflows help integrators plan reliable unmanned water-surface data collection.
Payload options such as echo sounder, side-scan sonar, ADCP and water quality sensors make the platform practical for survey, patrol and monitoring bids.
Applications
Typical project scenarios
Use the application cards as a quotation starting point. TOKNAV can confirm the final kit after checking project environment and delivery requirements.
Recommended configuration and accessories can be confirmed according to the project site, correction method and buyer's country.
Recommended configuration and accessories can be confirmed according to the project site, correction method and buyer's country.
Recommended configuration and accessories can be confirmed according to the project site, correction method and buyer's country.
Recommended configuration and accessories can be confirmed according to the project site, correction method and buyer's country.
Brochure-based details
Complete Specifications
The table below organizes key parameters from TOKNAV catalogs and model datasheets into procurement-friendly groups for easier comparison.
Series and Applications
ModelsTboat10 for compact unmanned surface operations; Tboat20 for full-function professional USV projects
Application scenariosBathymetric survey, water quality monitoring, water quality sampling, patrol USV with side-scan sonar, hydrological monitoring and underwater surveying
PayloadTboat10 maximum payload 35kg; Tboat20 maximum payload 50kg
Hull protectionIP67 waterproof and dustproof hull design with reinforced bumper protection
Hull, Power and Endurance
Tboat10 hull dimensions980 x 520 x 254mm; draft 8.5cm; hull 7kg, total weight 30kg
Tboat20 hull dimensions1280 x 580 x 430mm; draft 10cm; hull 12kg, total weight 40kg
Battery33.6V 25Ah x 2 rechargeable ternary lithium battery packs with hot-swap replacement
Operating time3 hours at 2m/s; up to 7 hours at 1.5m/s
Maximum speedTboat10 up to 7m/s and supports safe passage through 4m/s current cross-sections; Tboat20 up to 6m/s
MotorBrushless dual motors; Tboat10 rated 900W, Tboat20 rated 1100W
Navigation, Control and Communication
GNSSBuilt-in GNSS positioning and orientation dual antenna with BDS, GPS, GLONASS, Galileo, QZSS and SBAS signal support
RTK positioning accuracyHorizontal +/-8mm + 1ppm; vertical +/-15mm + 1ppm
Directional accuracy0.1 degree accuracy with 1m baseline
Control modesManual, automatic, hover and return-to-home modes
Communication4G and 2.4G data/video communication; optional base station radio and network CORS
Interfaces2 x RJ45 Ethernet ports, 2 x RS232 serial ports, 2 x RS485 serial ports
Depth Measurement and Payload Options
Depth frequency200kHz single-beam depth measurement listed in series brochure
Depth range0.15-200m, with extended range available as an option
Depth accuracy+/-1cm + 0.1% D, where D is water depth
Payload optionsEcho sounder, side-scan sonar, multibeam echo sounder, ADCP, in-situ analyzer, cameras, LiDAR and water quality sensors depending on configuration
Downloads and inquiry package
Get Catalog, Datasheet and Quote Support
Download the category brochure or send the model requirement directly to TOKNAV sales for the latest datasheet, price and recommended accessories.
Ready for quotation?Send your target quantity and application for Tboat USV Series.
Send Requirements →Buyer Notes
Parameters may be updated by the manufacturer. For quotation, distributor cooperation or OEM/ODM projects, please send your target application, quantity, country and required accessories so TOKNAV can confirm the latest configuration.
Procurement FAQ
Common Questions Before Purchase
What is Tboat USV Series mainly used for?
Tboat USV Series is mainly used for Bathymetric survey, Water quality monitoring, Patrol USV with side-scan sonar, Hydrological monitoring. Buyers can confirm the final configuration based on project application, country, correction method and accessory requirements.
Can I request the latest datasheet and price for Tboat USV Series?
Yes. Use the quote form on this page to request the latest datasheet, price, MOQ, lead time, packing list and recommended accessories for Tboat USV Series.
Are the parameters final for every market?
Product parameters may be updated by the manufacturer and can vary by configuration or regional version. TOKNAV should confirm the latest configuration before quotation or shipment.
Procurement support
Get Model Quote →Need help choosing a complete receiver kit?
Send your model, target quantity, market country, application and accessory preference. TOKNAV can prepare a practical quote package for distributor review or project bidding.
Deformation Monitoring Solution
CORS and VRS Service Solution
TR10Pro Line Marking Robot

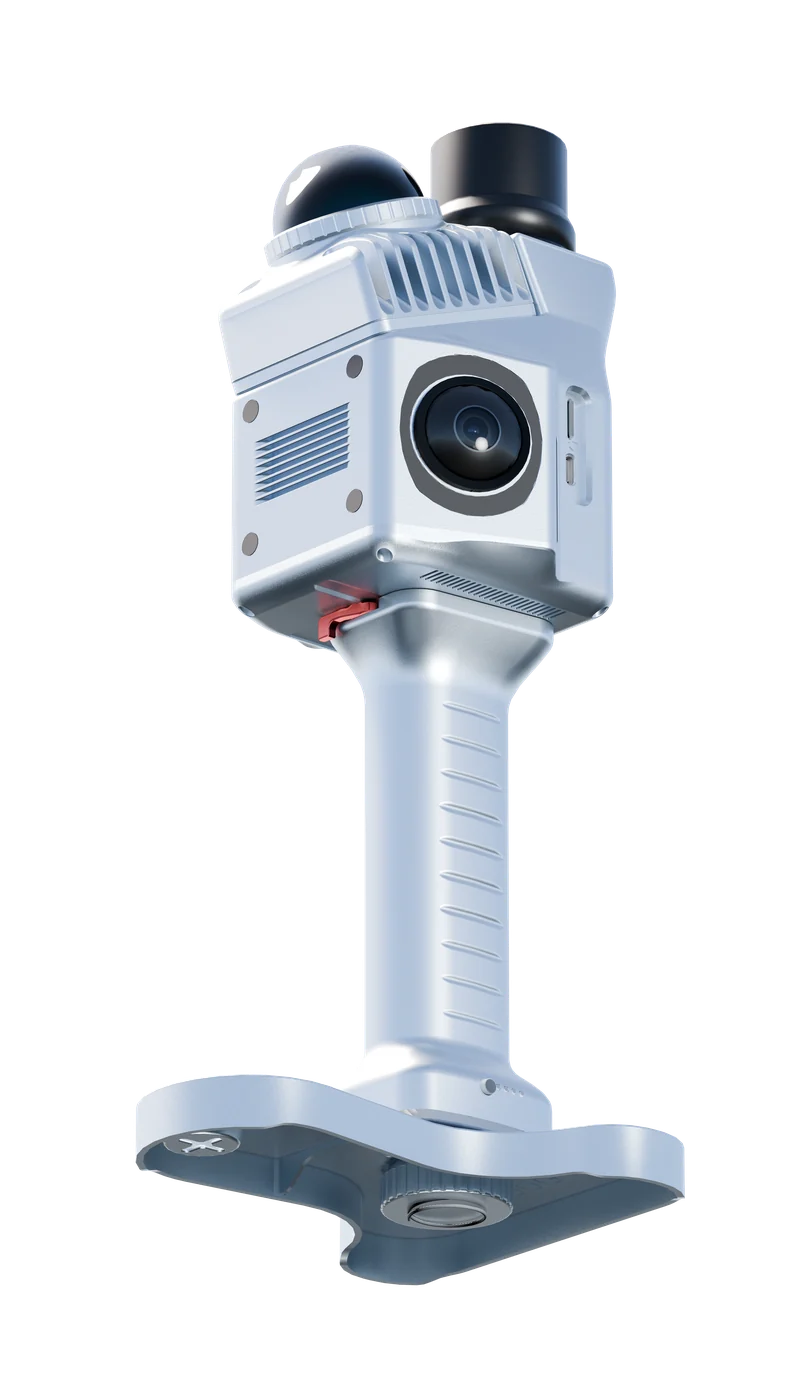

TSR20 Handheld LiDAR SLAM Scanner
