← Back to GNSS ReceiversPhotogrammetry RTK receiver
T50Pro GNSS Receiver
High-end T50 family receiver for photogrammetry, AR stakeout and professional surveying workflows.
Channels / output1408 channels, NMEA-0183 output and RTCM 3.x correction I/O
Update frequency20Hz max
RTK accuracyHorizontal +/- (8mm+1ppm), Vertical +/- (15mm+1ppm)
Tilt correction<2cm within 60 degrees
Key Features
✓Photogrammetry
✓AR stakeout
✓RTCM 3.x
✓Professional dealer-ready receiver kit
Buyer-focused value
Why overseas buyers choose this model
Structured for dealers, contractors and system integrators comparing receiver performance, kit completeness and after-sales preparation.
Full-system GNSS tracking, IMU tilt and integrated communication options cover common survey scenarios.
The compact receiver package is suitable for distributor demos, tender preparation and project delivery.
Applications
Typical project scenarios
Use the application cards as a quotation starting point. TOKNAV can confirm the final kit after checking project environment and delivery requirements.
Recommended configuration and accessories can be confirmed according to the project site, correction method and buyer's country.
Recommended configuration and accessories can be confirmed according to the project site, correction method and buyer's country.
Recommended configuration and accessories can be confirmed according to the project site, correction method and buyer's country.
Brochure-based details
Complete Specifications
The table below organizes key parameters from TOKNAV catalogs and model datasheets into procurement-friendly groups for easier comparison.
GNSS, Accuracy and Survey Functions
GNSS signalsGPS L1C/A, L1C, L2P(Y), L2C, L5; GLONASS L1/L2/L3; BDS B1I/B2I/B3I/B1C/B2a/B2b(PPP); Galileo E1/E5a/E5b/E6(PPP); QZSS L1/L2/L5; SBAS L1(PPP); NavIC L5 on supported firmware.
Channels / output1408 channels, NMEA-0183 output and RTCM 3.x correction I/O
Update frequency20Hz max
RTK accuracyHorizontal +/- (8mm+1ppm), Vertical +/- (15mm+1ppm)
Static accuracyHorizontal +/- (2.5mm+1ppm), Vertical +/- (5mm+1ppm)
Tilt correction<2cm within 60 degrees
AR stakeoutSupported on T50basic, T50 and T50Pro
Laser / photogrammetryT50 includes 100m laser measurement; T50Pro includes photogrammetry with 2-4cm error within 2-15m
Camera, Radio and Communication
AR camera1/2.8-inch sensor, f/2.5 aperture, 1920 x 1080 resolution, distortion <0.38%
T50 laser moduleClass 3R, 100m range, +/-5mm +/-100 x 10-6 x D precision, 520 +/-20nm wavelength
T50Pro image camera1/2.6-inch sensor, 3.27mm focal length, f/2.8 aperture, 1920 x 1080 resolution, FOV 83 x 72 x 51 degrees
RadioIntegrated transceiver, 410-470MHz, 0.5W/1.5W, TRIMTALK/TRIMMK3/SOUTH/TRANSEOT/SATEL/LORA
WirelessBluetooth BR+EDR+BLE, Wi-Fi 802.11 b/g/n, LTE FDD/TDD, WCDMA and GSM bands
Storage32GB storage
Power and Mechanical
Battery7.4V, 6500mAh
Work timeOver 16 hours in controller network mode or typical rover GSM use depending on model
ChargingUSB PD 15V/2A and 5V/3A
Operating temperature-30°C to +65°C
Storage temperature-40°C to +85°C
ProtectionIP68
Dimensions / weightPhi132 x 83mm, 770g
Downloads and inquiry package
Get Catalog, Datasheet and Quote Support
Download the category brochure or send the model requirement directly to TOKNAV sales for the latest datasheet, price and recommended accessories.
Ready for quotation?Send your target quantity and application for T50Pro GNSS Receiver.
Send Requirements →Buyer Notes
Parameters may be updated by the manufacturer. For quotation, distributor cooperation or OEM/ODM projects, please send your target application, quantity, country and required accessories so TOKNAV can confirm the latest configuration.
Procurement FAQ
Common Questions Before Purchase
What is T50Pro GNSS Receiver mainly used for?
T50Pro GNSS Receiver is mainly used for Photogrammetry, AR stakeout, Surveying. Buyers can confirm the final configuration based on project application, country, correction method and accessory requirements.
Can I request the latest datasheet and price for T50Pro GNSS Receiver?
Yes. Use the quote form on this page to request the latest datasheet, price, MOQ, lead time, packing list and recommended accessories for T50Pro GNSS Receiver.
Are the parameters final for every market?
Product parameters may be updated by the manufacturer and can vary by configuration or regional version. TOKNAV should confirm the latest configuration before quotation or shipment.
Procurement support
Get Model Quote →Need help choosing a complete receiver kit?
Send your model, target quantity, market country, application and accessory preference. TOKNAV can prepare a practical quote package for distributor review or project bidding.

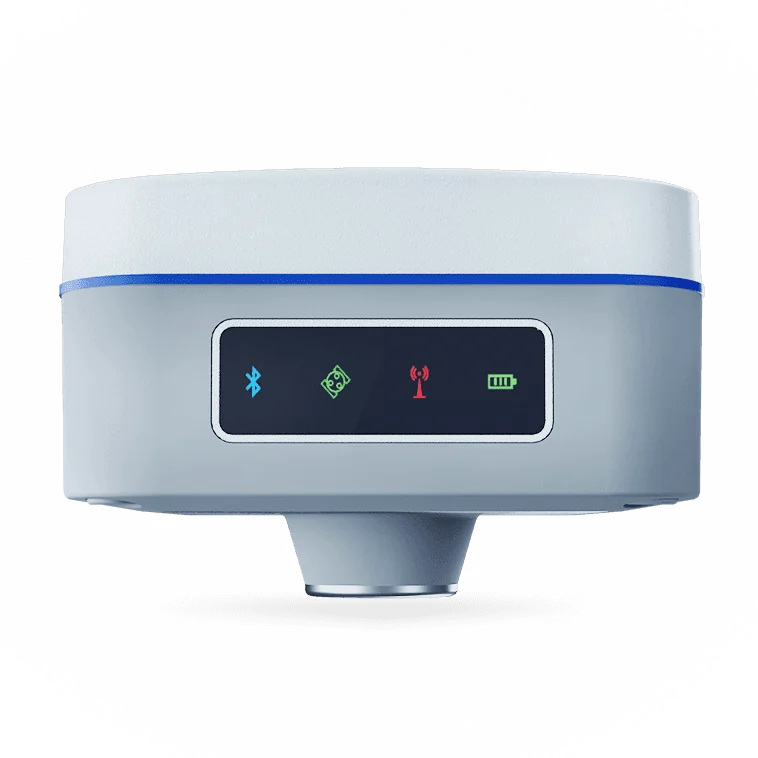

T5Lite GNSS Receiver

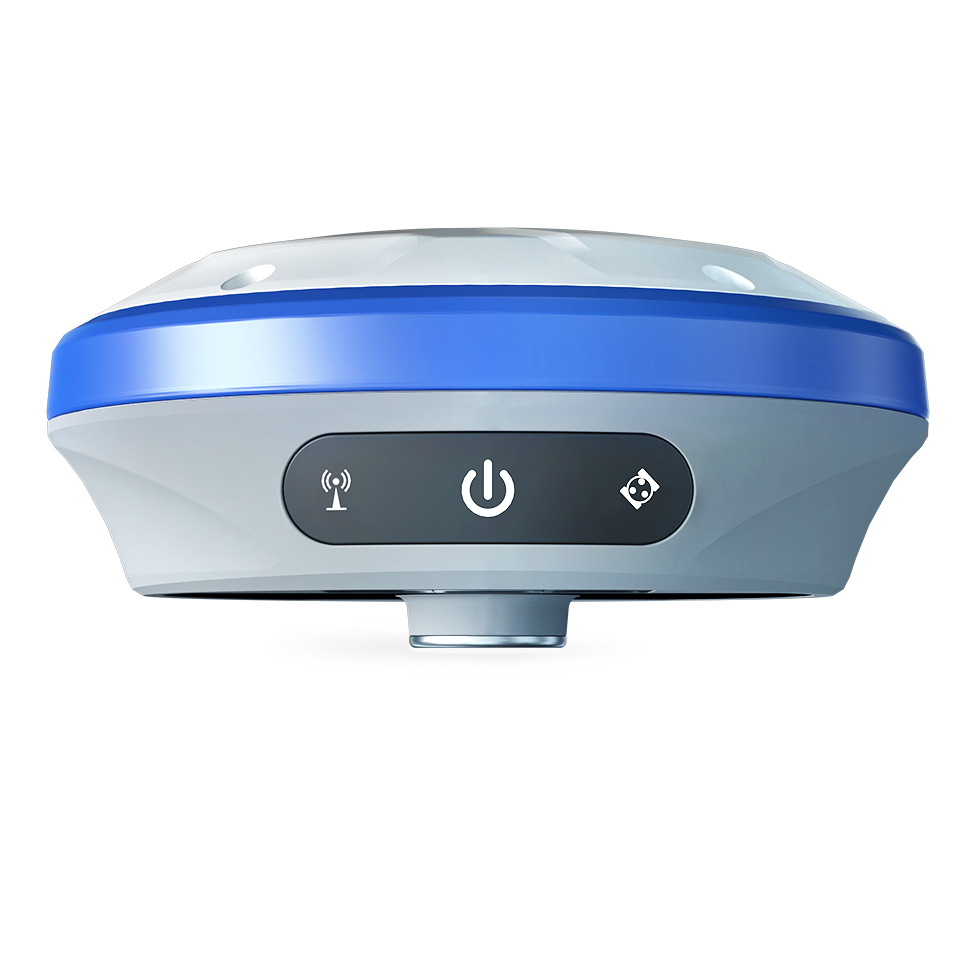

T10Pro GNSS Receiver

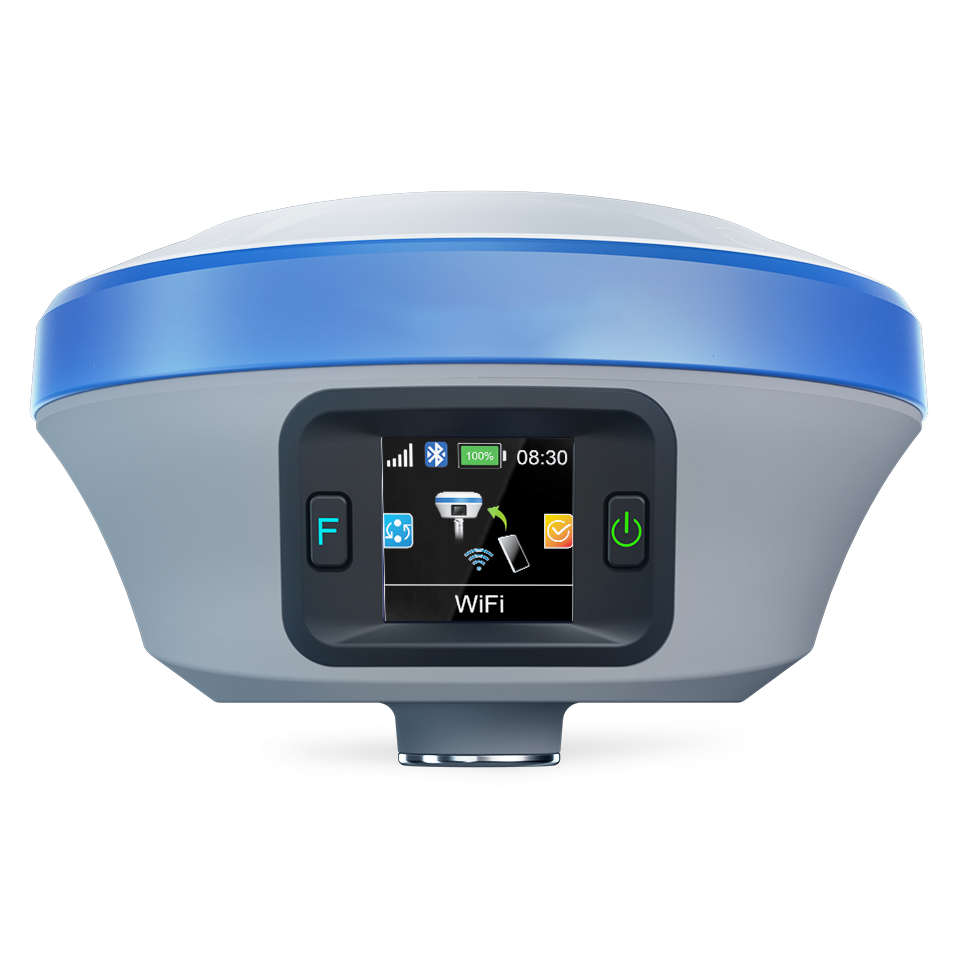

T20Pro GNSS Receiver
